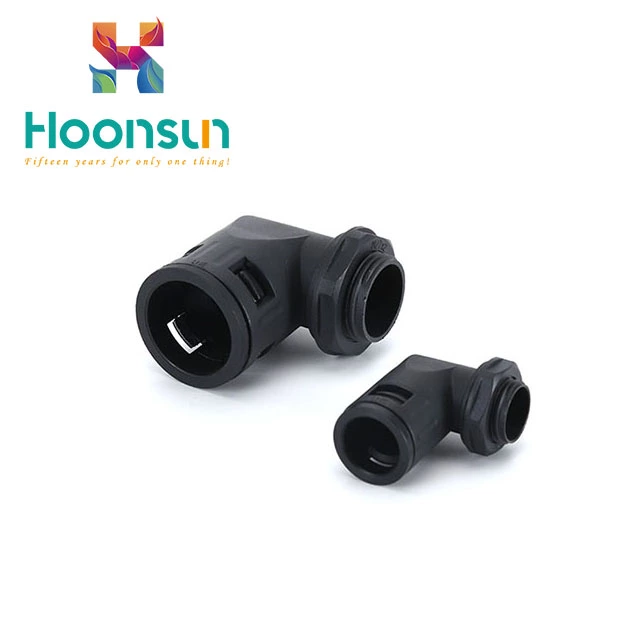

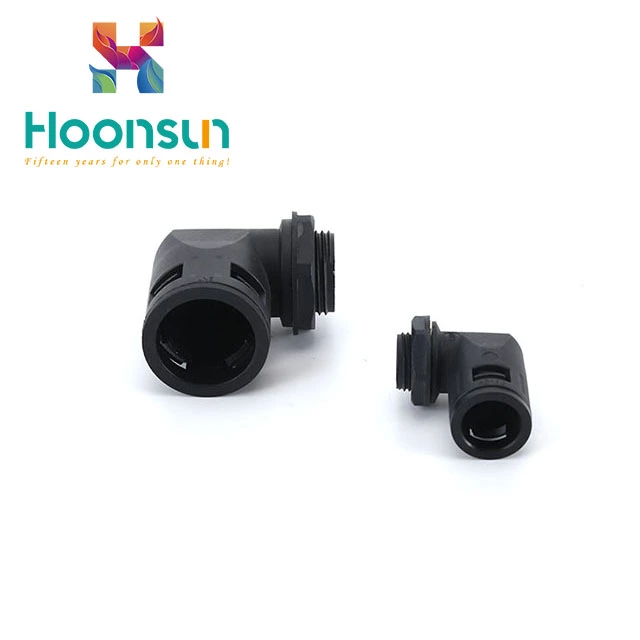

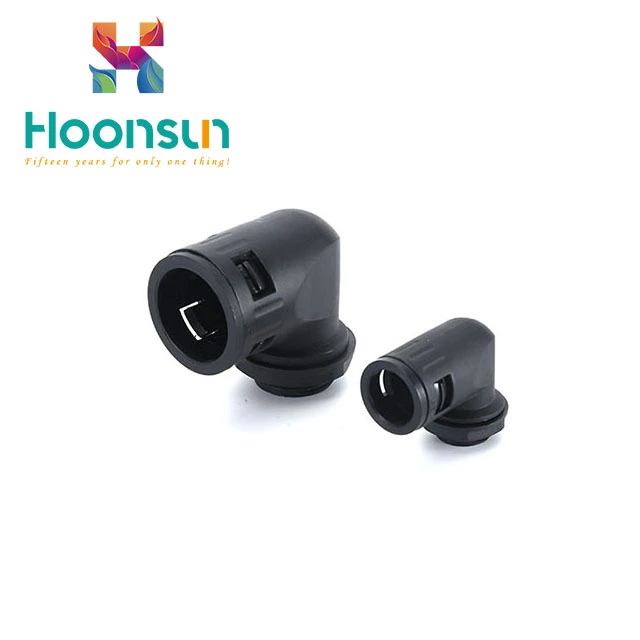

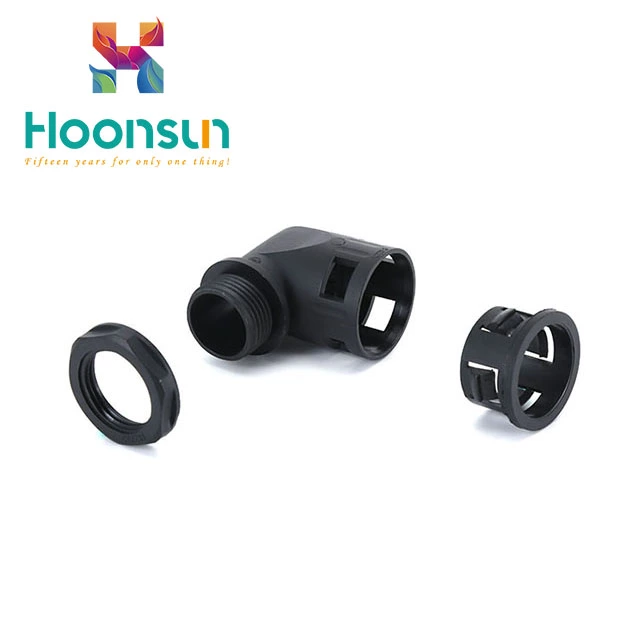

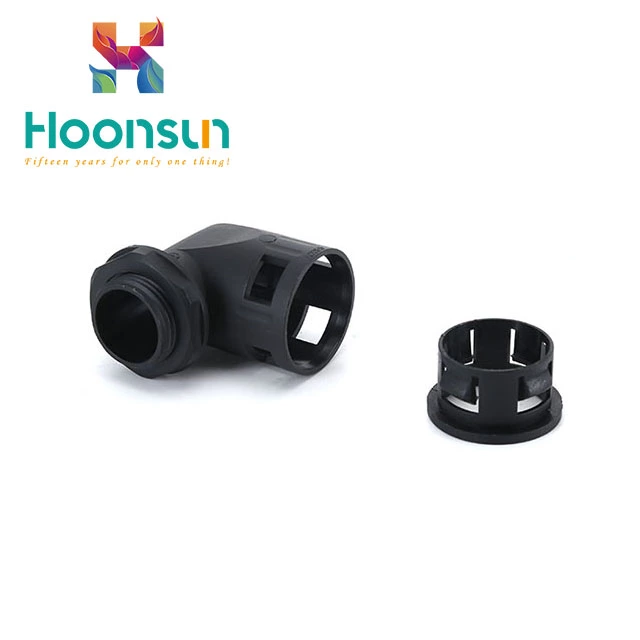

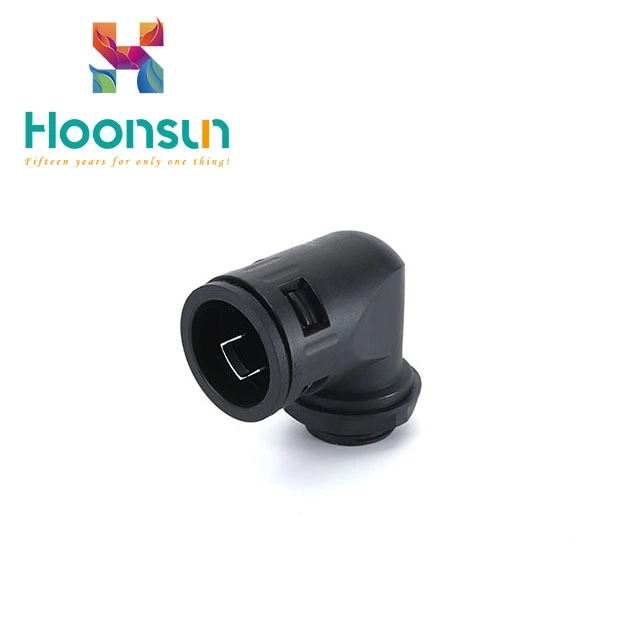

high quality right angle union for flexible connector sizes
- Model:
- HX-NLF
- Code:
- 3917400000
- Thread Type:
- Metric PG thread type
- Material:
- UL nylon PA66
- Approvals:
- CE ,REACH ,ROHS
- Temperature Resistance:
- -40℃-100℃ ，short time to 120℃ .
- Size:
- M12-M50 PG7-PG48
| 规格 Item | 适用软管 Conduit size | 螺纹外径 Thread O.D. | 螺纹长度 Thread Length | 产品编号 Code |
| M12×1.5 | AD10.0 | 12 | 10 | HX-NLFM12-10 |
| M16×1.5 | AD13.0 | 16 | 11.5 | HX-NLFM16-13 |
| M16×1.5 | AD15.8 | 16 | 12 | HX-NLFM16-15.8 |
| M20×1.5 | AD18.5 | 20 | 12 | HX-NLFM20-18.5 |
| M20×1.5 | AD21.2 | 20 | 13 | HX-NLFM20-21.2 |
| M25×1.5 | AD25.0 | 25 | 13 | HX-NLFM25-25 |
| M25×1.5 | AD28.5 | 25 | 13 | HX-NLFM25-28.5 |
| M32×1.5 | AD34.5 | 32 | 15 | HX-NLFM32-34.5 |
| M40×1.5 | AD42.5 | 40 | 15 | HX-NLFM40-42.5 |
| M50×1.5 | AD54.5 | 50 | 15 | HX-NLFM50-54.5 |
| PG7 | AD10.0 | 12.3 | 10 | HX-NLFPG7-10 |
| PG9 | AD13.0 | 15 | 11.5 | HX-NLFPG9-13 |
| PG11 | AD15.8 | 18.4 | 12 | HX-NLFPG11-15.8 |
| PG13.5 | AD18.5 | 20.4 | 12 | HX-NLFPG13.5-18.5 |
| PG16 | AD21.2 | 22.3 | 13 | HX-NLFPG16-21.2 |
| PG19 | AD25.0 | 25 | 13 | HX-NLFPG19-25 |
| PG21 | AD28.5 | 28 | 13 | HX-NLFPG21-28.5 |
| PG29 | AD34.5 | 36.7 | 15 | HX-NLFPG29-34.5 |
| PG36 | AD42.5 | 46.7 | 15 | HX-NLFPG36-42.5 |
| PG48 | AD54.5 | 59 | 16 | HX-NLFPG48-54.5 |
Q:Are you trading company or manufacturer?
A:We are the factory ,also we are export the goods by ourselves.
Q:How long is your delivery time?
A:Generally we can send out the goods with in 3-7days if the goods are in stock. or It should be 3-7days if the goods are not in stock, it is according to your order quantity.
Q:Do you provide samples? Is it free or not ?
A:Yes, we could offer the samples for free charge but don’t pay the cost of freight.
Q:What is your terms of payment ?
A: Payment <=1000USD,100% in advance. Payment >=1000USD, 30%T/T in advance.
Q: How about the after-sale service?
A: Any feedback or comment are welcomed. We will try to make the best assistant to let you maximum satisfaction.
